###Cutaway view of a click pen mechanism

This model shows the three main mechanical parts of a retractable pen:

1. *Push button* (with ratchet)

2. *Follower* (spring-loaded by means of the ink cartridge)

3. *Cam*

The complete model of [the pen can be visualized here](https://skfb.ly/SRCn). The animated mechanism can be seen in this [cutaway view](https://skfb.ly/Tq9N) of a retractable pen.

![model 1](https://i.imgur.com/FzSMsJV.png)
![model 2](https://i.imgur.com/v3NsQ4u.png)

*Close-up views of the click pen mechanism (PBR renderings performed with Keyshot 6.1).*

---
🎞️ Don't miss this [Youtube video](https://youtu.be/UbgO2sfWzNg) featuring the 3D model of the retractable pen mechanism.

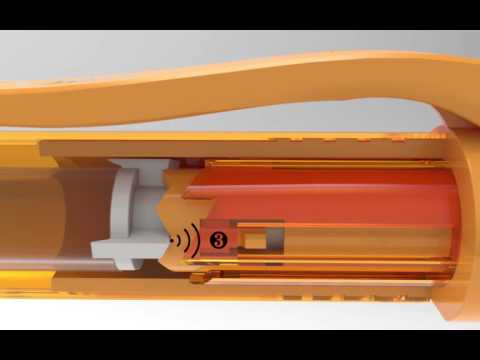

[![Retractable pen (click pen): How it works](https://img.youtube.com/vi/UbgO2sfWzNg/0.jpg)](https://youtu.be/UbgO2sfWzNg)
